Wall Behind an Outdoor Kitchen Firebox: Layers and Connections

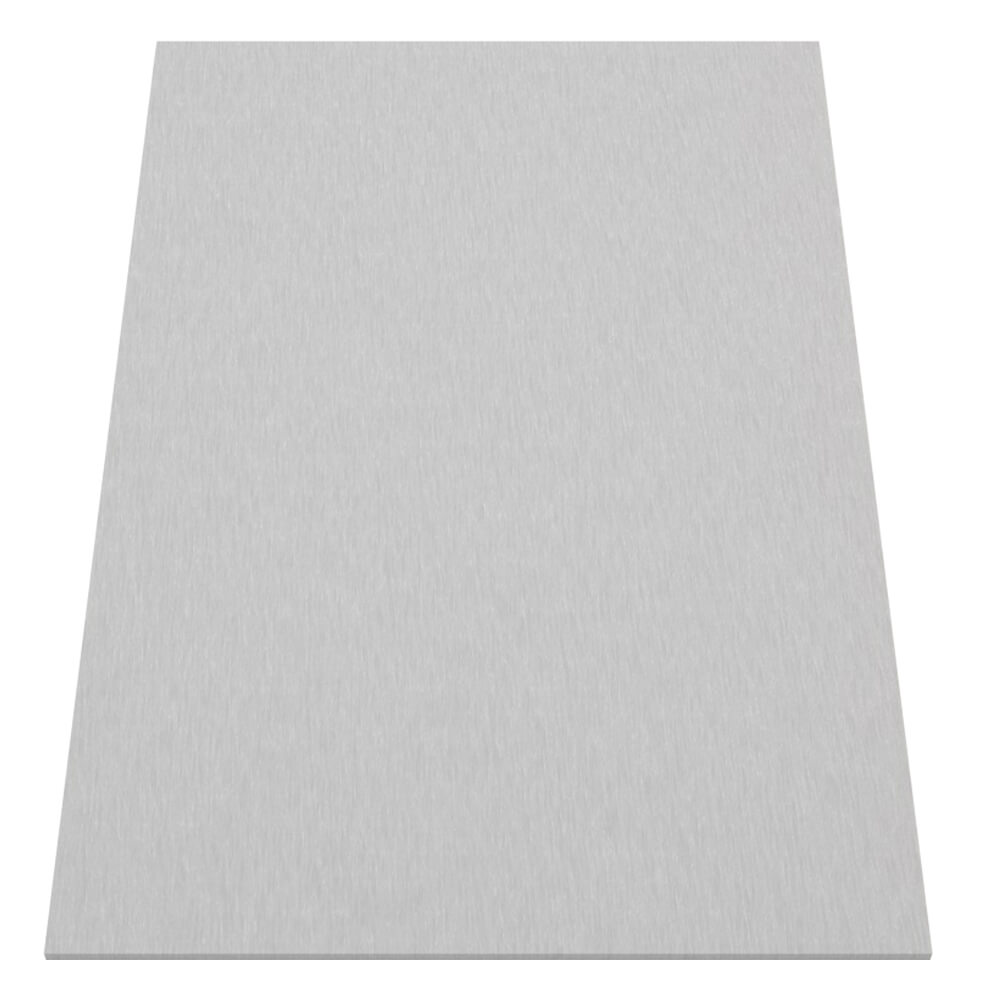

Vitcas HT Fireboard for suitable protective surfaces

The wall behind the outdoor kitchen firebox needs a proper cross-section, not just a face resistant to temperature. The substrate material, heating from one side, and conditions on the other side are important. Before applying the cladding, mark all layers and the method of their support.

Check the wall together with the appliance

Read the specific firebox requirements regarding positioning and clearances. Show in the drawing the materials hidden behind the visible surface. Wood or building insulation does not disappear from the assessment by covering it with a resistant board.

External conditions also include lateral precipitation and water ingress at the base. A covered worktop does not guarantee that the entire wall will remain dry. Establish terminations and water drainage before choosing a decorative finish.

Each board serves its own purpose

HT Fireboard is a board for specific protective and surface applications. Ceramic fibre board creates the proper insulation layer in compatible arrangements. Do not use both as substitutes just because they have similar dimensions.

Support should correspond to the weight of the layers and working conditions. HB60 has described proper uses for high-temperature connections, including outdoor ones. However, adhesive does not replace the specified supports or fastenings for the entire wall.

Examine the details before closing

Check the corners, metal contacts, and areas designated for movement. The cover should not block access to the device, connections, or required openings. Fit the equipment before applying the final finishing layer.

Keep photos and a cross-section with the product name for each layer. After the planned start-up, perform a cold inspection. If a crack appears later, it will be possible to determine whether the change concerns the face, connection, or support, instead of selecting repair material solely based on the appearance of the surface.
